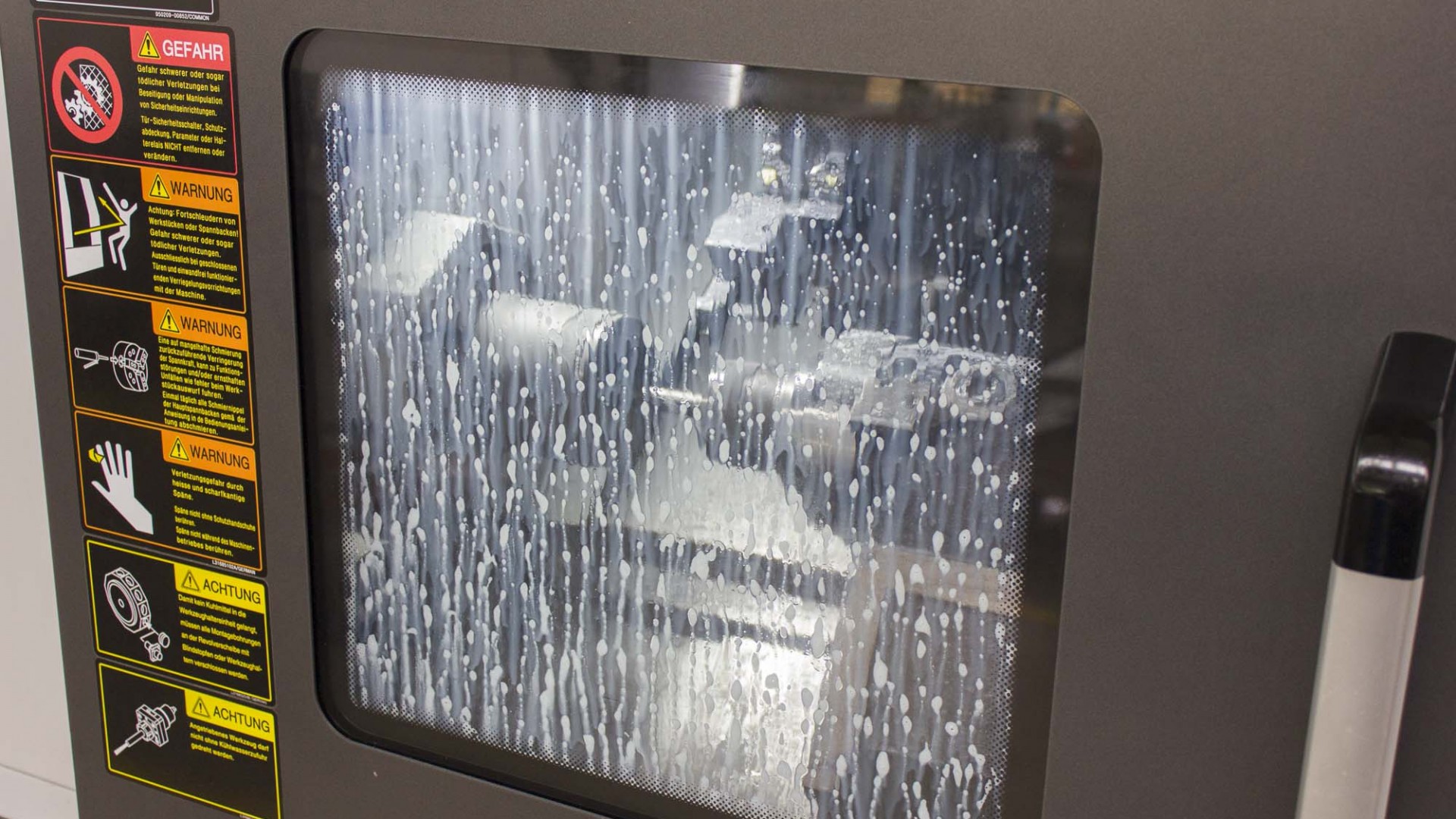

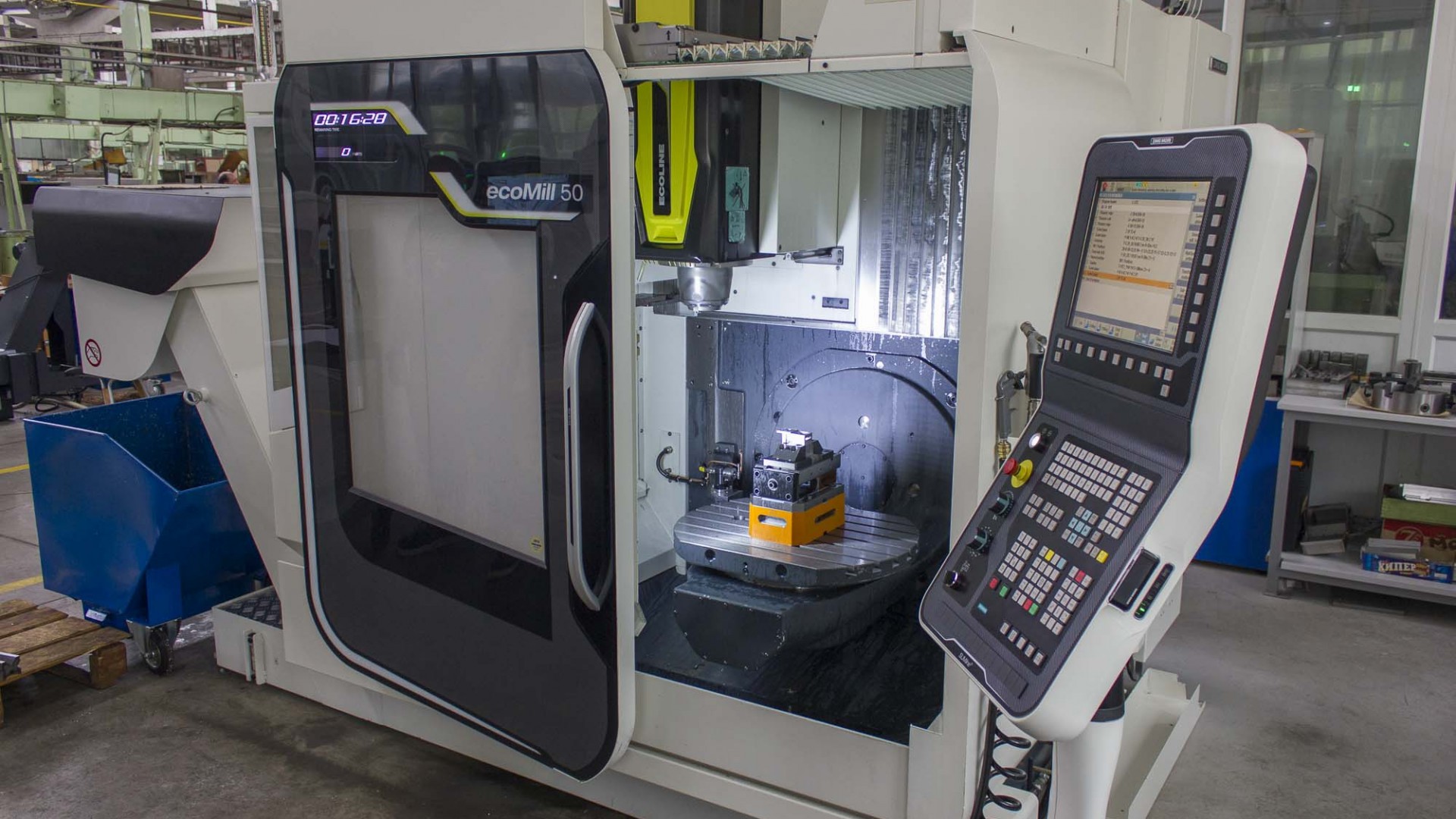

Samel 90 PLC use professional software for the design, development and production stages. The integrated high level CAD/CAM system includes numerous modules for 3D Solid and 3D Surface design, parametric geometry, adaptive modeling, drafting, machining and specialized applications. The system is capable to perform all types of machining from 2.5 to 5 controlled axes, and also all the necessary post processing.

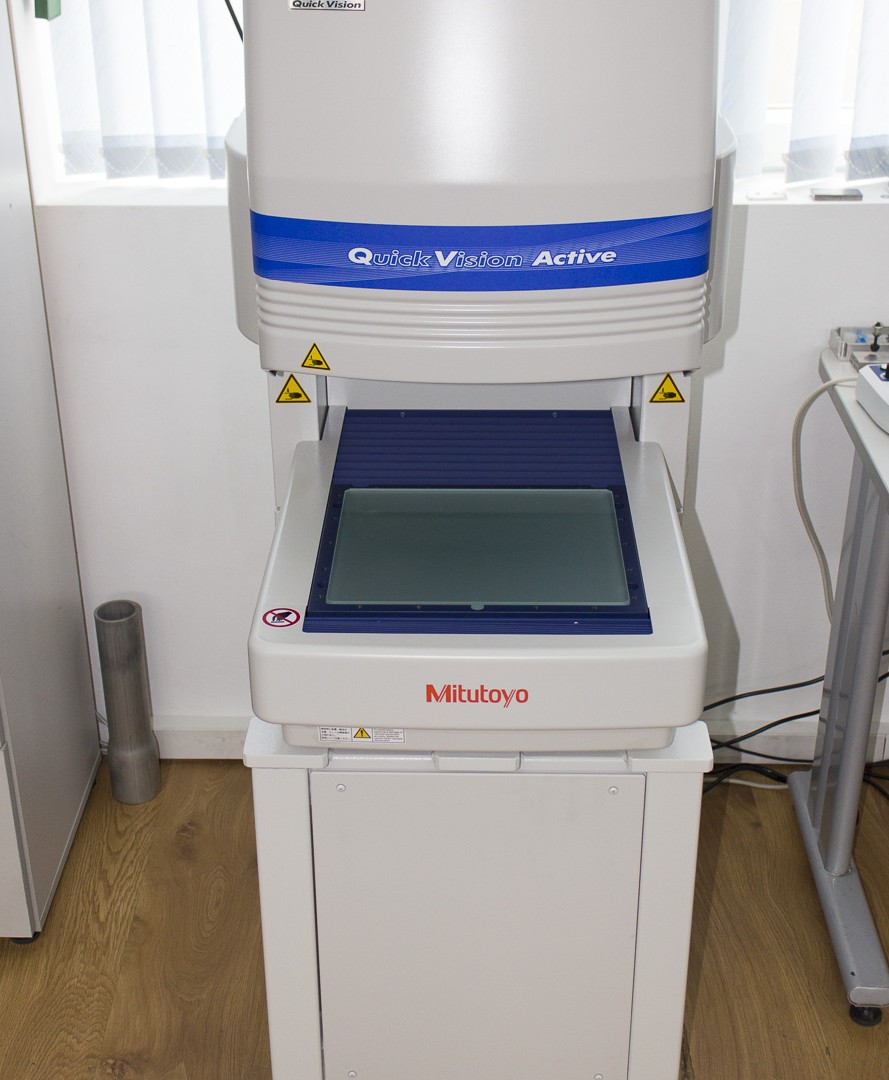

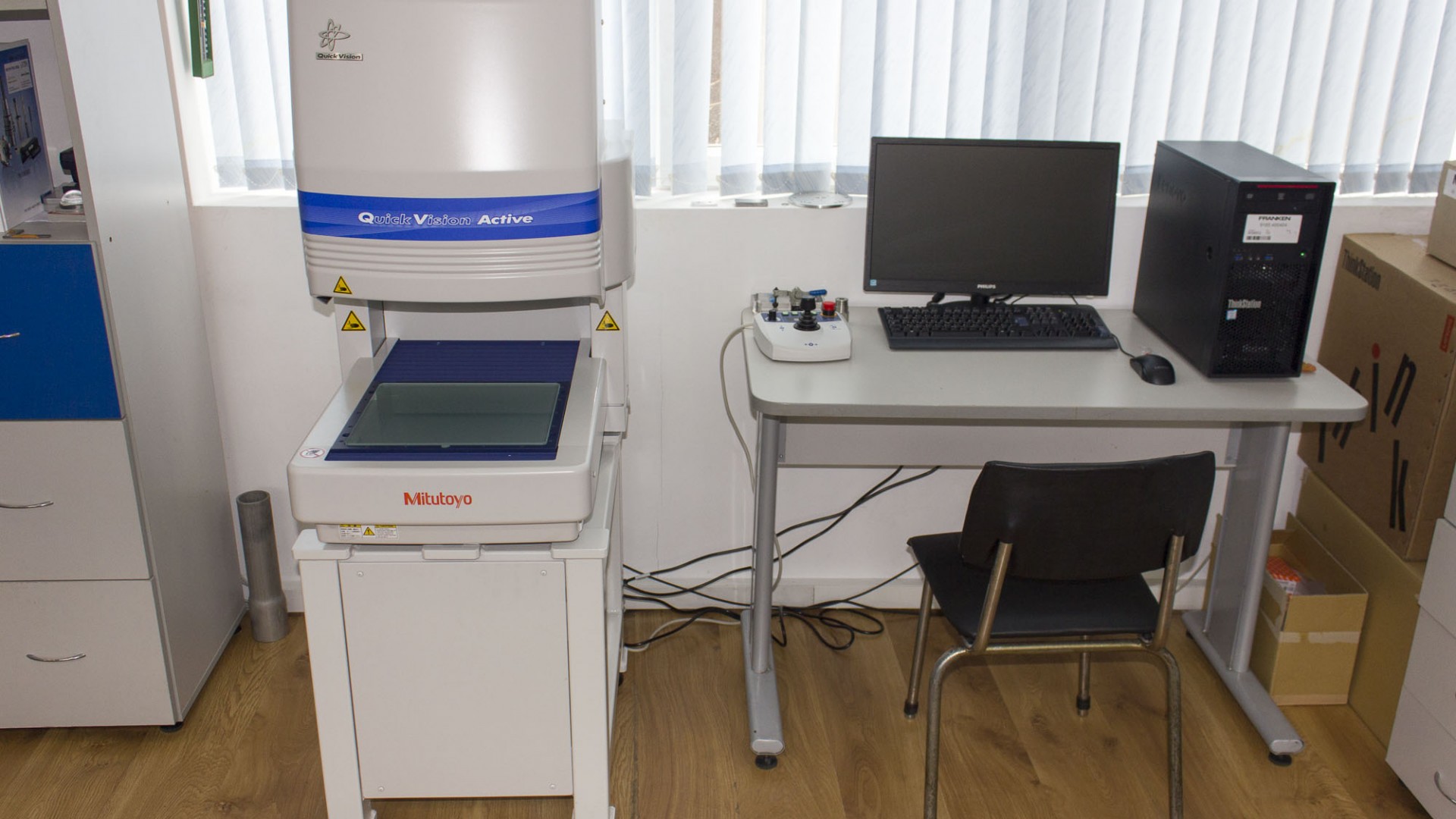

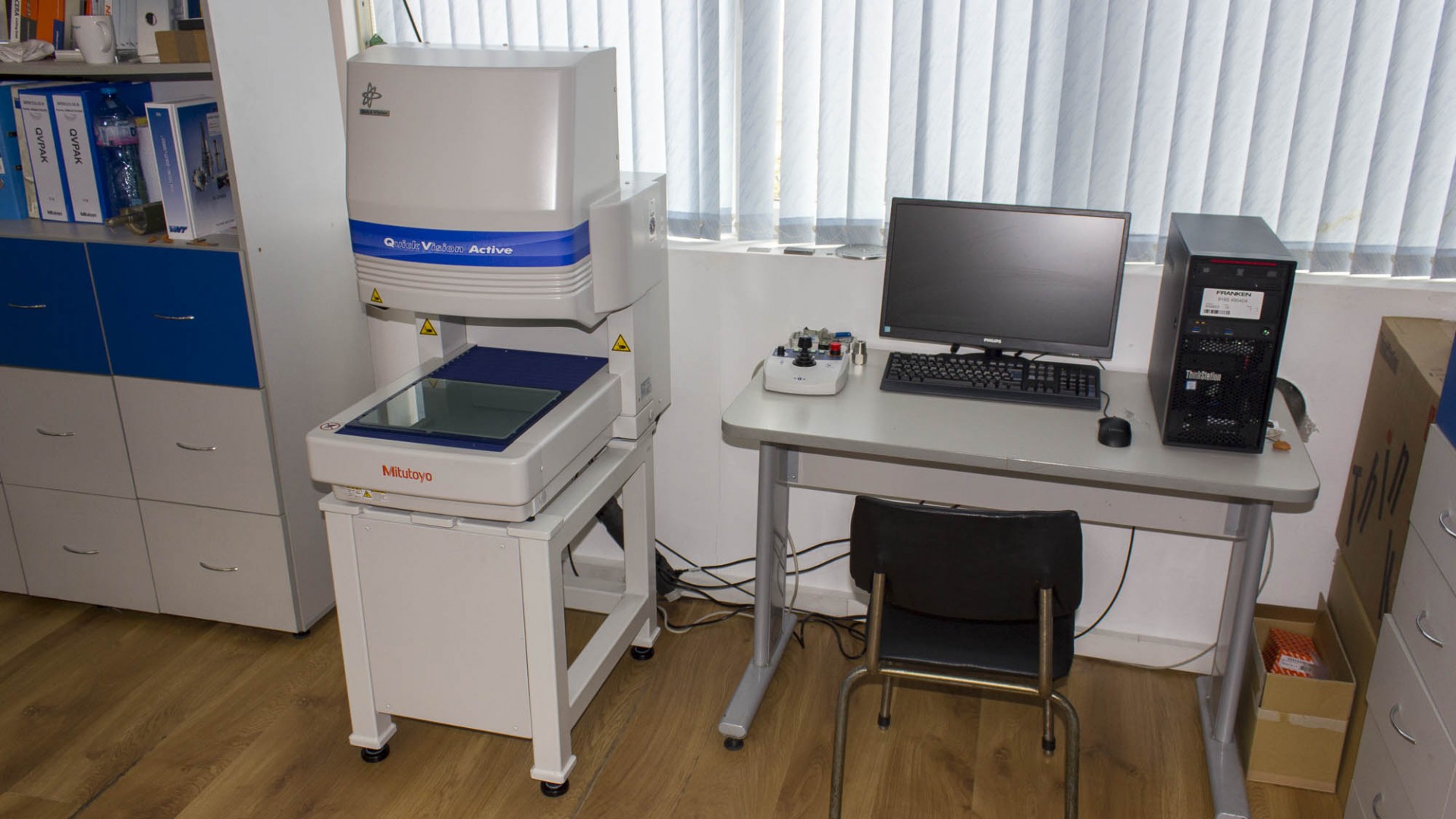

Samel 90 PLC use Mitutoyo Releases Quick Vision Active System.

Quick Vision Active offers a range of magnifications to meet the challenges of measuring a range of features.

Mitutoyo America Corporation announces the addition of the Quick Vision Active series to the line-up of vision measurement systems. This CNC vision measuring system is an easy-to-operate, space-saving model with advanced functionality to meet many contact and noncontact measuring needs.

The Quick Vision Active is highly efficient and flexible, offering a wide field of view with interchangeable objective zoom lenses to meet the challenges of measuring small to large features. The 8-step zoom lens can achieve a magnification range of 0.5X to 7X while maintaining crisp image quality. The 1X optional objective achieves a magnification range of 0.5X to 3.5X with a working distance of 74 mm. The 2X option can achieve a magnification range of 1X to 7X.

Quick Vision Active is available with measuring ranges of 10 x 8 x 6 inches (250 x 200 x 150 mm) or 16 x 16 x 8 inches (400 x 400 x 200 mm), with or without the touch-probe measuring option. QVPAK software uses edge detection and pattern recognition to locate and orientate the coordinate system with minimal operator input, ensuring accuracy and repeatability of the measurement results.

Other features include:

• Programmable LED stage, coaxial light and 4-quandrant LED ring light
• High-speed autofocus
• High-resolution and high-speed color USB camera
• High-quality zoom optics with Mitutoyo-manufactured interchangeable lenses
• Powerful QVPAK 3D vision software
• Touch-probe retrofittable
